Products for the piling industry

PRODUCTS

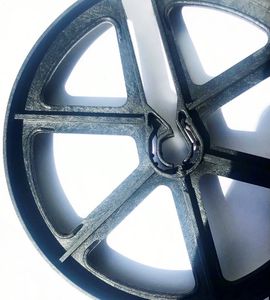

PILE CAGE SPACERS

RJM 75 spacer is a durable plastic pile cage spacer providing 75mm concrete cover.

This product is designed to clip onto helicals or rings made from bar sizes 6mm-8mm-10mm+12mm.



RJM 75/16 is a 75mm cover heavy duty spacer designed to clip onto 16mm rebar.



RJM 100 is a 100mm cover heavy duty spacers designed to clip onto 16+20mm rebar




RJM 50 is a 50mm cover plastic clip on pile cage spacer designed to clip onto helicals or rings made from bar sizes 6mm-8mm-10m-12mm



pilecagespacers.co.uk

SKID SLIDER SPACERS

We are manufacturers of pile cage skid spacers using rebar

size 10 or 12mm



Skid spacers are designed to be use with prefabricated pile cages or diaphragm wall cages.

They locate the cage into position giving the require cover.

We also manufacture ladder spacers to suit client requirements.

Very robust and available in various sizes.




skidspacers.co.uk

REBAR END SAFETY CAPS

We stock a range of highly visible heavy duty bar end safety caps designed to help prevent injury from protruding steel reinforcing bars.

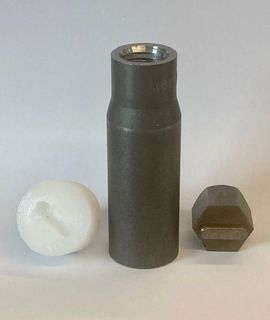

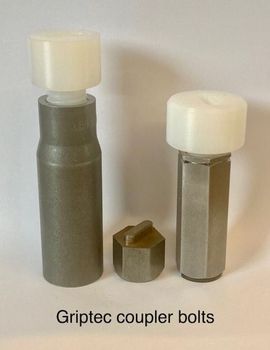

COUPLER VOID FORMERS

This is our patent pending plastic void former and adapter.

With a thread on one end of the adaptor suitable for connection with a rebar coupler for the purpose of creating a cavity to allow another threaded rebar to be inserted and coupled after concreting.

 The threaded end that connects with the coupler is manufactured to suit the size and type of coupler being used.


Any cover length in a one piece void former is available for use with box out systems etc.


An extraction slot in the top of the former is used to remove the  leaving a clean cavity.

The void former can be reused once removed and we even provide the extraction tool.


Suitable for all types of couplers including Lenton,GripTec etc


couplervoidformers.co.uk
